HAproxy监测工具(HaTop)

1.什么是HaTop

HATop 是一个交互式的基于 ncurses 开发的实时监控 HAProxy 负载均衡系统的统计工具。后来有人对该工具进行改进,增加了 TCP 支持

2.安装部署

在安装之前需要开启haproxy的sock

修改

 /etc/haproxy/haproxy.cfg文件中的global部分,添加

下载安装包

安装

以上可以直接复制黏贴就可以实现了,具体的参数在hatop-master/README  可以了解到

3.HaTop使用

haproxy

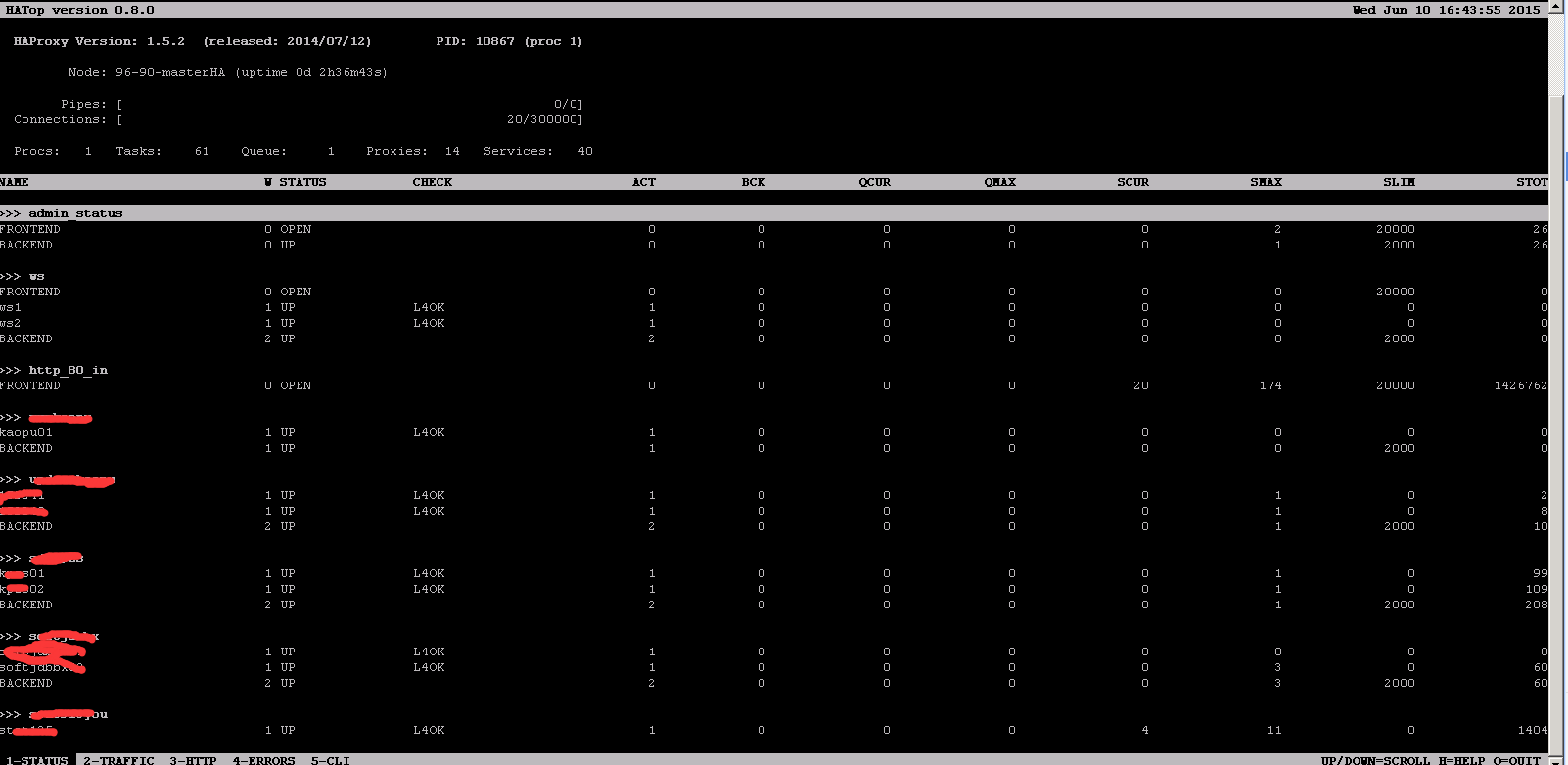

按q键退出,运行界面分为5大块      (界面切换分别按 1 2 3 4 5 来选择)

很多参数在上面的hatop-master/README  文件中可以了解的,界面也很清晰的告诉我们多少个机器是OK的

In STATUS mode
————–
::

ACT         server is active (server), number of active servers (backend)  存货机器
BCK         server is backup (server), number of backup servers (backend)  备份机器
QCUR        current queued requests  当前队列请求
QMAX        max queued requests   最大队列请求
SCUR        current sessions  当前会话
SMAX        max sessions 最大会话
SLIM        sessions limit   会话限制
STOT        total sessions  总会话数

In TRAFFIC mode
—————
::

LBTOT       total number of times a server was selected  每个服务器被选中的次数
RATE        number of sessions per second over last elapsed second  过去一秒的会话运行次数
RLIM        limit on new sessions per second  在每秒新建会话限制
RMAX        max number of new sessions per second 每秒最大连接数
BIN         bytes in (IEEE 1541-2002)
BOUT        bytes out (IEEE 1541-2002)

In HTTP mode
————
::

RATE        HTTP requests per second over last elapsed second  过去1妙http请求
RMAX        max number of HTTP requests per second observed
RTOT        total number of HTTP requests received
1xx         number of HTTP responses with 1xx code
2xx         number of HTTP responses with 2xx code
3xx         number of HTTP responses with 3xx code
4xx         number of HTTP responses with 4xx code
5xx         number of HTTP responses with 5xx code
?xx         number of HTTP responses with other codes (protocol error)

In ERRORS mode
————–
::

CF          number of failed checks
CD          number of UP->DOWN transitions
CL          last status change
ECONN       connection errors
EREQ        request errors
ERSP        response errors
DREQ        denied requests
DRSP        denied responses
DOWN        total downtime

Health check status reference
=============================
::

UNK         unknown
INI         initializing
SOCKERR     socket error
L4OK        check passed on layer 4, no upper layers testing enabled
L4TMOUT     layer 1-4 timeout
L4CON       layer 1-4 connection problem, for example
“Connection refused” (tcp rst) or “No route to host” (icmp)
L6OK        check passed on layer 6
L6TOUT      layer 6 (SSL) timeout
L6RSP       layer 6 invalid response – protocol error
L7OK        check passed on layer 7
L7OKC       check conditionally passed on layer 7, for example 404 with
disable-on-404
L7TOUT      layer 7 (HTTP/SMTP) timeout
L7RSP       layer 7 invalid response – protocol error
L7STS       layer 7 response error, for example HTTP 5xx

haproxy

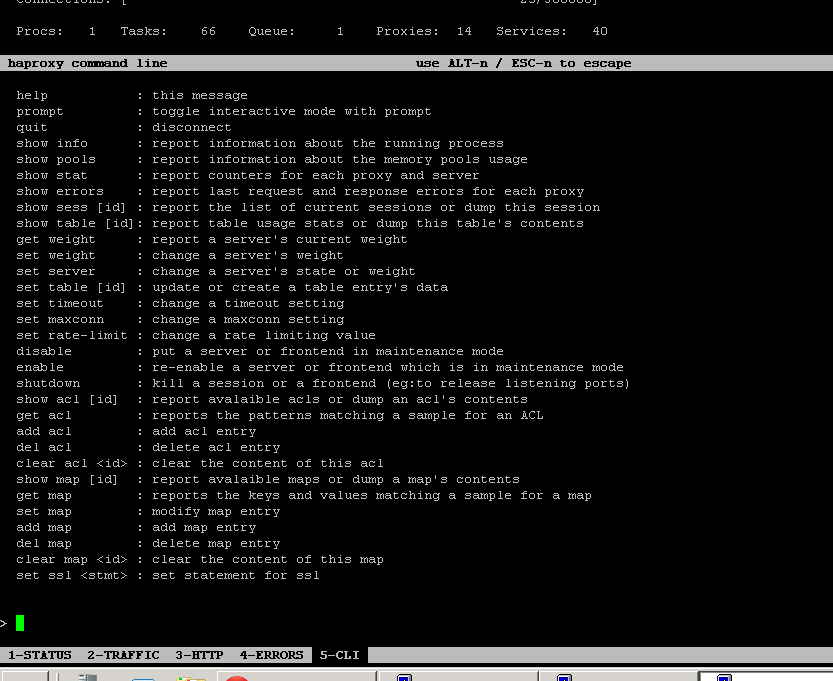

可以通过给该命令行查询一些服务器信息,可以敲“help”命令查询命令





文章转载来自:ttlsa.com
