扯两句
wen.lu
一路走到现在, 离不开大家的支持!
很多朋友通过各种方式问过我: “你丫怎么不开源啊…”
先向那些朋友道歉啊, 其实不是我不想开源, 只是之前的版本配置实在太复杂.nginx
三方扩展用了一大堆, 外加lua
, 以及突破千行的配置工程
, 这么拙劣的技艺, 实在不好意思拿出来分享
遂决定写一个扩展, 让google
反代的配置和使用wen.lu
一样简单.
1
2
3
|
location / {
google on;
}
|
你没有看错, “一行配置, google 我有!”

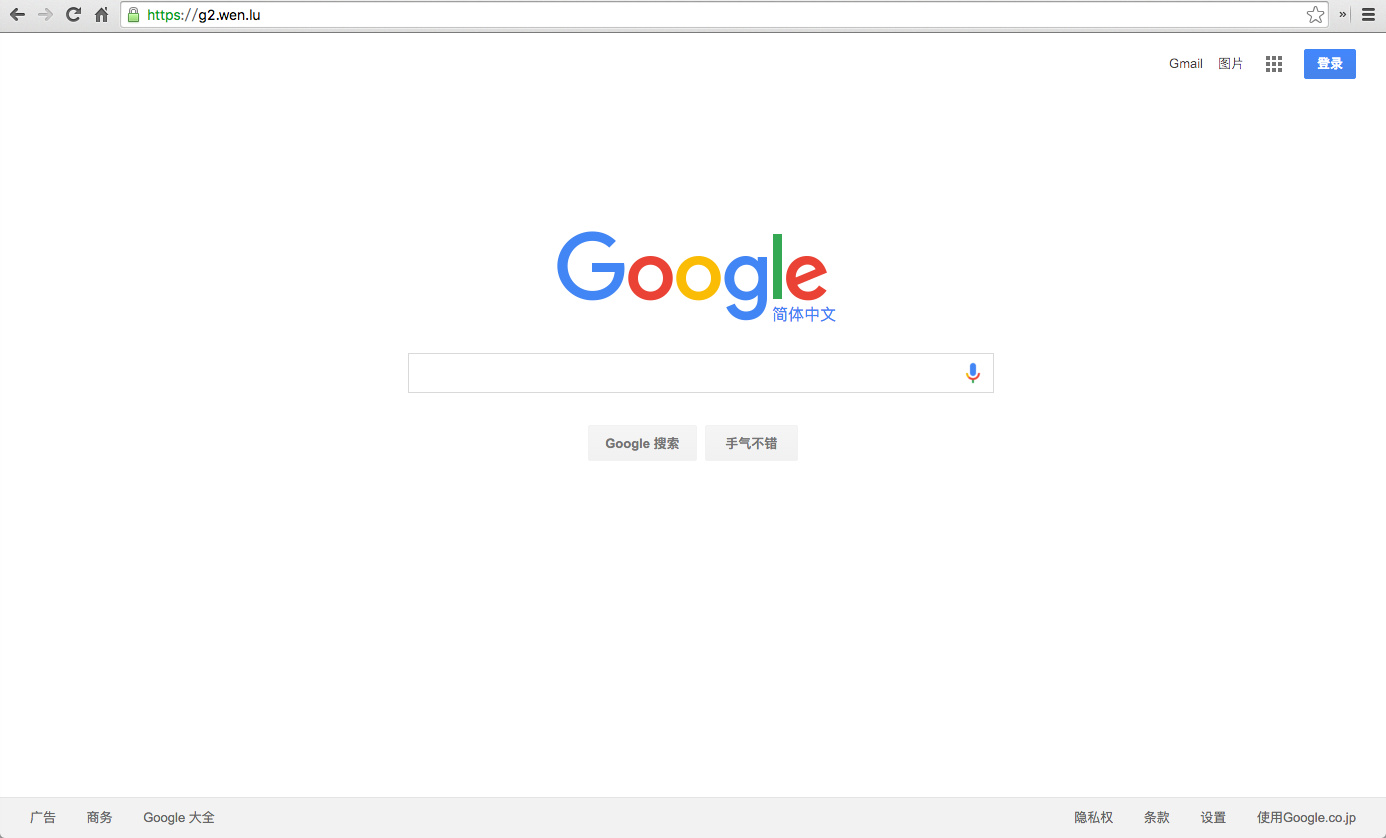

现在 g2.wen.lu 就是由该扩展驱动
依赖库
pcre
正则ngx_http_proxy_module
反向代理ngx_http_substitutions_filter_module
多重替换
安装
以 ubuntu 14.04 为例 i386, x86_64 均适用
最简安装
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
|
#
# 安装 gcc & git
#
apt–get install build–essential git gcc g++ make
#
# 下载最新版源码
# nginx 官网:
# http://nginx.org/en/download.html
#
wget “http://nginx.org/download/nginx-1.7.8.tar.gz”
#
# 下载最新版 pcre
# pcre 官网:
# http://www.pcre.org/
#
wget “ftp://ftp.csx.cam.ac.uk/pub/software/programming/pcre/pcre-8.38.tar.gz”
#
# 下载最新版 openssl
# opessl 官网:
# https://www.openssl.org/
#
wget “https://www.openssl.org/source/openssl-1.0.1j.tar.gz”
#
# 下载最新版 zlib
# zlib 官网:
# http://www.zlib.net/
#
wget “http://zlib.net/zlib-1.2.8.tar.gz”
#
# 下载本扩展
#
git clone https://github.com/cuber/ngx_http_google_filter_module
#
# 下载 substitutions 扩展
#
git clone https://github.com/yaoweibin/ngx_http_substitutions_filter_module
#
# 解压缩
#
tar xzvf nginx–1.7.8.tar.gz
tar xzvf pcre–8.38.tar.gz
tar xzvf openssl–1.0.1j.tar.gz
tar xzvf zlib–1.2.8.tar.gz
#
# 进入 nginx 源码目录
#
cd nginx–1.7.8
#
# 设置编译选项
#
./configure \
—prefix=/opt/nginx–1.7.8 \
—with–pcre=../pcre–8.38 \
—with–openssl=../openssl–1.0.1j \
—with–zlib=../zlib–1.2.8 \
—with–http_ssl_module \
—add–module=../ngx_http_google_filter_module \
—add–module=../ngx_http_substitutions_filter_module
#
# 编译, 安装
# 如果扩展有报错, 请发 issue 到
# https://github.com/cuber/ngx_http_google_filter_module/issues
#
make
sudo make install
#
# 启动, 安装过程到此结束
#
sudo /opt/nginx–1.7.8/sbin/nginx
#
# 配置修改后, 需要 reload nginx 来让配置生效,
#
sudo /opt/nginx–1.7.8/sbin/nginx –s reload
|
从发行版迁移
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
|
#
# 安装 gcc & git
#
apt–get install build–essential git gcc g++ make
#
# 安装发行版
# (已安装的请忽略)
#
apt–get install nginx
#
# 查看发行版编译选项及版本
#
nginx –V
# nginx version: nginx/1.4.7
# built by gcc 4.8.2 (Ubuntu 4.8.2-19ubuntu1)
# TLS SNI support enabled
# configure arguments:
# –with-cc-opt=’-g -O2 -fstack-protector –param=ssp-buffer-size=4 \
–Wformat –Werror=format–security –D_FORTIFY_SOURCE=2‘ \
# –with-ld-opt=’–Wl,–Bsymbolic–functions –Wl,–z,relro‘ \
# –prefix=/usr/share/nginx \
# –conf-path=/etc/nginx/nginx.conf \
# –http-log-path=/var/log/nginx/access.log \
# –error-log-path=/var/log/nginx/error.log \
# –lock-path=/var/lock/nginx.lock \
# –pid-path=/run/nginx.pid \
# –http-client-body-temp-path=/var/lib/nginx/body \
# –http-fastcgi-temp-path=/var/lib/nginx/fastcgi \
# –http-proxy-temp-path=/var/lib/nginx/proxy \
# –http-scgi-temp-path=/var/lib/nginx/scgi \
# –http-uwsgi-temp-path=/var/lib/nginx/uwsgi \
# –with-debug \
# –with-pcre-jit \
# –with-ipv6 \
# –with-http_ssl_module \
# –with-http_stub_status_module \
# –with-http_realip_module \
# –with-http_addition_module \
# –with-http_dav_module \
# –with-http_geoip_module \
# –with-http_gzip_static_module \
# –with-http_image_filter_module \
# –with-http_spdy_module \
# –with-http_sub_module \
# –with-http_xslt_module \
# –with-mail \
# –with-mail_ssl_module
#
# 下载对应 nginx 大版本
# nginx 官网:
# http://nginx.org/en/download.html
#
wget “http://nginx.org/download/nginx-1.4.7.tar.gz”
#
# 下载本扩展
#
git clone https://github.com/cuber/ngx_http_google_filter_module
#
# 下载 substitutions 扩展
#
git clone https://github.com/yaoweibin/ngx_http_substitutions_filter_module
#
# 安装依赖库的 dev 包
#
apt-get install libpcre3-dev libssl-dev zlib1g-dev libxslt1-dev libgd-dev libgeoip-dev
#
# 请对照自己发行版的 configure 参数进行 configure, 勿直接 copy 以下配置
#
./configure \
–with-cc-opt=’–g –O2 –fstack–protector —param=ssp–buffer–size=4 \
–Wformat –Werror=format–security –D_FORTIFY_SOURCE=2‘ \
–with-ld-opt=’–Wl,–Bsymbolic–functions –Wl,–z,relro‘ \
—prefix=/usr/share/nginx \
—conf–path=/etc/nginx/nginx.conf \
—http–log–path=/var/log/nginx/access.log \
—error–log–path=/var/log/nginx/error.log \
—lock–path=/var/lock/nginx.lock \
—pid–path=/run/nginx.pid \
—http–client–body–temp–path=/var/lib/nginx/body \
—http–fastcgi–temp–path=/var/lib/nginx/fastcgi \
—http–proxy–temp–path=/var/lib/nginx/proxy \
—http–scgi–temp–path=/var/lib/nginx/scgi \
—http–uwsgi–temp–path=/var/lib/nginx/uwsgi \
—with–debug \
—with–pcre–jit \
—with–ipv6 \
—with–http_ssl_module \
—with–http_stub_status_module \
—with–http_realip_module \
—with–http_addition_module \
—with–http_dav_module \
—with–http_geoip_module \
—with–http_gzip_static_module \
—with–http_image_filter_module \
—with–http_spdy_module \
—with–http_sub_module \
—with–http_xslt_module \
—with–mail \
—with–mail_ssl_module \
—add–module=../ngx_http_google_filter_module \
—add–module=../ngx_http_substitutions_filter_module
#
# 覆盖二进制文件
#
cp –rf objs/nginx /usr/sbin/nginx
#
# 重启 nginx 至此, 迁移工作结束
#
service nginx stop
service nginx start
#
# 配置修改后, 需要 restart nginx 来让配置生效
#
service nginx restart
|
基本配置方法
http
配置方式
1
2
3
4
5
6
7
8
9
|
server {
server_name <你的域名>;
listen 80;
resolver 8.8.8.8;
location / {
google on;
}
}
|
https
配置方式
1
2
3
4
5
6
7
8
9
10
11
12
13
|
server {
server_name <你的域名>;
listen 443;
ssl on;
ssl_certificate <你的证书>;
ssl_certificate_key <你的私钥>;
resolver 8.8.8.8;
location / {
google on;
}
}
|
进阶配置方法
基本搜索
需要配置 resolver
用于域名解析
1
2
3
4
5
6
7
8
|
server {
# … 仅列举部分配置
resolver 8.8.8.8;
location / {
google on;
}
# …
}
|
谷歌学术
google_scholar
依赖于 google
, 所以 google_scholar
无法独立使用.
由于谷歌学术近日升级, 强制使用 https
协议, 并且 ncr
已经支持, 所以不再需要指定谷歌学术的 tld
配置 nginx
1
2
3
4
|
location / {
google on;
google_scholar on;
}
|
默认语言偏好
默认的语言偏好可用 google_language
来设置, 如果没有设置, 默认使用 zh-CN
(中文)
1
2
3
4
5
6
|
location / {
google on;
google_scholar on;
# 设置成德文
google_language “de”;
}
|
支持的语言如下.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
|
ar -> 阿拉伯
bg -> 保加利亚
ca -> 加泰罗尼亚
zh–CN -> 中国 (简体)
zh–TW -> 中国 (繁体)
hr -> 克罗地亚
cs -> 捷克
da -> 丹麦
nl -> 荷兰
en -> 英语
tl -> 菲律宾
fi -> 芬兰
fr -> 法国
de -> 德国
el -> 希腊
iw -> 希伯来
hi -> 印地文
hu -> 匈牙利
id -> 印度尼西亚
it -> 意大利
ja -> 日本
ko -> 朝鲜
lv -> 拉脱维亚
lt -> 立陶宛
no -> 挪威
fa -> 波斯
pl -> 波兰
pt–BR -> 葡萄牙 (巴西)
pt–PT -> 葡萄牙 (葡萄牙)
ro -> 罗马尼亚
ru -> 俄罗斯
sr -> 塞尔维亚
sk -> 斯洛伐克
sl -> 斯洛文尼亚
es -> 西班牙
sv -> 瑞典
th -> 泰国
tr -> 土耳其
uk -> 乌克兰
vi -> 越南
|
搜索引擎爬虫许可
任何搜索引擎爬虫都不被允许爬取 google 镜像
如下的默认 robots.txt
已经内置.
1
2
|
User–agent: *
Disallow: /
|
如果想要使用 google
自己的 robots.txt
请将 google_robots_allow
设为 on
1
2
3
4
5
6
|
#…
location / {
google on;
google_robots_allow on;
}
#…
|
Upstreaming
upstream
减少一次域名解析的开销, 并且通过配置多个网段的 google ip 能够一定程度上减少被 google 机器人识别程序侦测到的几率 (弹验证码).
1
2
3
4
5
6
7
|
# 可以通过如下方法获取 google ip
➜ ~ dig www.google.com @8.8.8.8 +short
173.194.38.209
173.194.38.211
173.194.38.212
173.194.38.210
173.194.38.208
|
然后将获取到的 ip 配置如下即可
1
2
3
4
5
6
7
|
upstream www.google.com {
server 173.194.38.209:443;
server 173.194.38.211:443;
server 173.194.38.212:443;
server 173.194.38.210:443;
server 173.194.38.208:443;
}
|
Proxy Protocal
默认采用 https
与后端服务器通信.
你可以使用 google_ssl_off
来强制将一些域降到 http
协议.
这个设置可以让一些需要二次转发的域通过 http
协议进行转发, 从而不再依赖 ssl
证书.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
|
#
# 例如 ‘www.google.com’ 按如下方式代理
# vps(hk) -> vps(us) -> google
#
#
# vps(hk) 配置
#
server {
# …
location / {
google on;
google_ssl_off “www.google.com”;
}
# …
}
upstream www.google.com {
server < vps(us) 的 ip >:80;
}
#
# vps(us) 配置
#
server {
listen 80;
server_name www.google.com;
# …
location / {
proxy_pass https://www.google.com;
}
# …
}
|
Copyright & License
所有代码都遵循与 Nginx 相同的开源协议
Copyright (C) 2014 by Cube.
